Power Save - Deep Sleep Mode
Materials
AmebaD [AMB21 / AMB22 / AMB23 / BW16] x 1

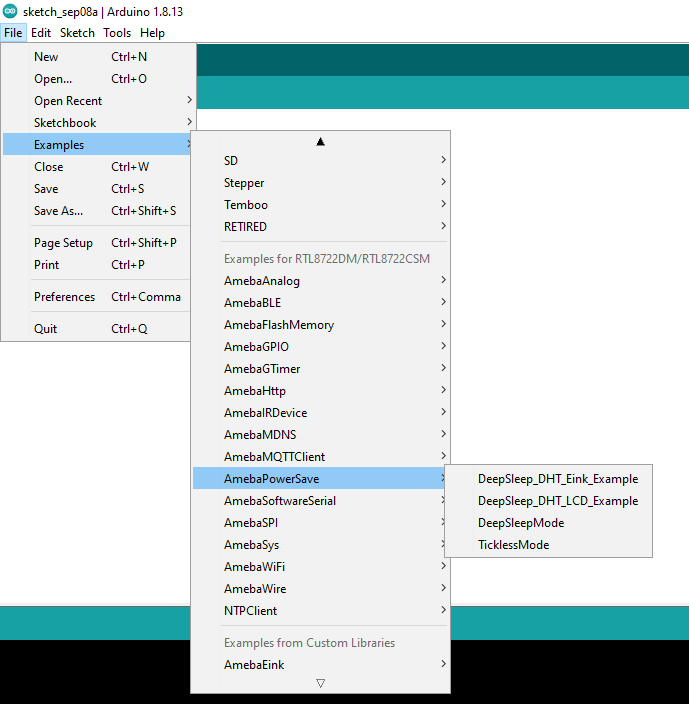

Example
Introduction
Ameba-D supports 2 low power modes which are deepsleep mode and sleep mode. Deep Sleep mode turns off more power domain than sleep mode. The power consumption of Deep Sleep mode is around 7μA to 8μA as compared to normal state which is around 22mA. This example describes how to enter Deep Sleep mode and configure the wakeup source
Set condition values as picture below.
“DS_WAKEUP_SOURCE” is used to set the wake-up source, user can chose 3
wake up sources now,
AON Timer(SET_DS_AON_TIMER_WAKEUP);
AON GPIO pins(SET_AONWAKEPIN_WAKEUP);
RTC Timer(SET_DS_RTC_WAKEUP);
Using AON Timer as wakeup source
AON Timer can be set from 0 to 32760000ms range by
AON_TIMER_SLEEP_DURATION

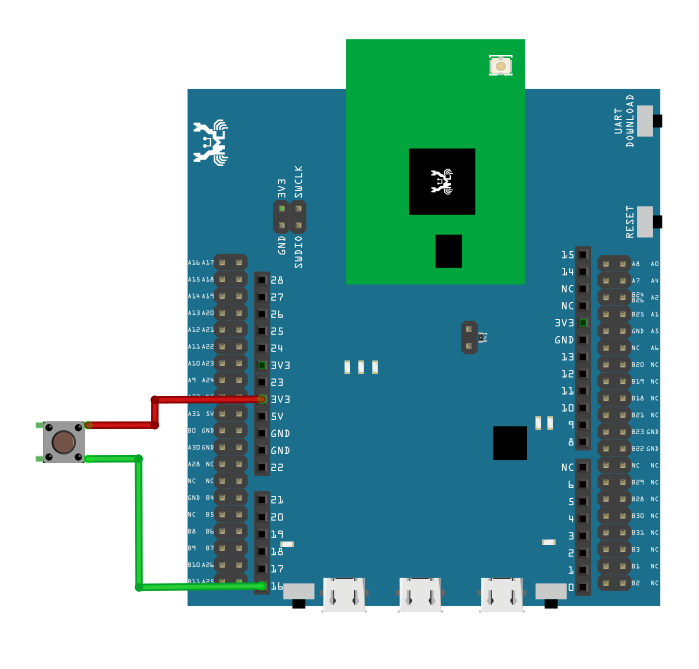

Using AON GPIO pins as wakeup source
For AMB21, there are 5 pins that can be set as AON pins and active
high for wakeup, GPIOA25(D16), GPIOA26(D17), GPIOA21(D26),
GPIOA20(D27), GPIOA(D28).
For AMB23, there are 8 pins that can be set as AON pins and active high
for wakeup, GPIOA12(D9), GPIOA13(D10), GPIOA14(D11), GPIOA15(D12),
GPIOA16(D13), GPIOA18(D15), GPIOA19(D16), GPIOA21(D18).
For BW16, there is only 6 pins that can be set as AON pin and active
high for wakeup, GPIOA_25 (D7), GPIOA_26 (D8), GPIOA_15 (D9), GPIOA_14
(D10), GPIOA_13 (D11), GPIOA_12 (D12).

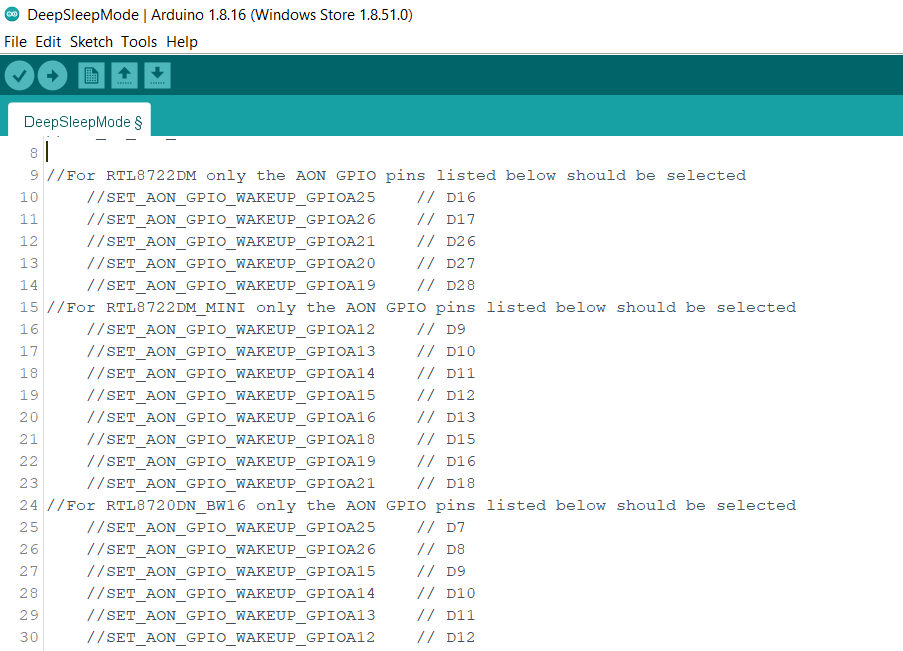

These AON pins can be set by using
SET_AON_GPIO_WAKEUP_GPIOA25
or the pin that you want to use as shown in the picture belowUsing RTC Timer as wakeup source

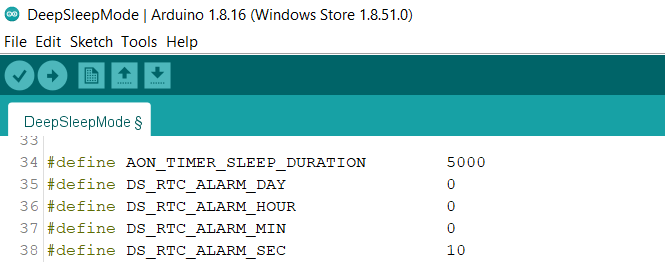

RTC Timer wakeup system is by setting alarm. The alarm has 4 values, day,
hour, min and sec. All 4 values can be set by
DS_RTC_ALARM_DAY
,
DS_RTC_ALARM_HOUR
, DS_RTC_ALARM_MIN
, and DS_RTC_ALARM_SEC

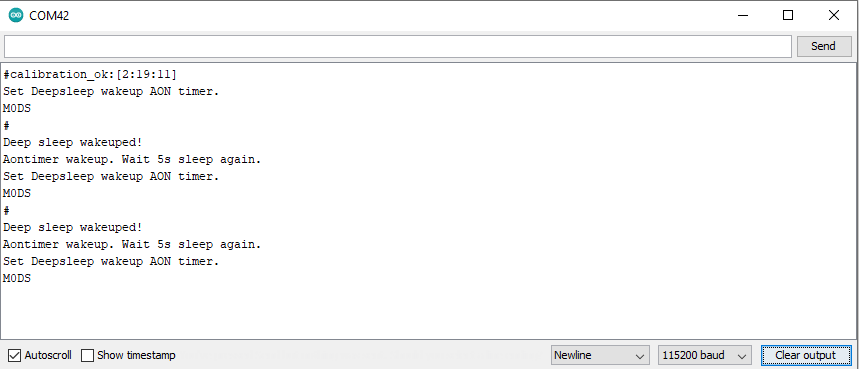

When all the condition values are set, the system will run and switch between normal and deep sleep mode which is controlled by the wakeup source. The serial monitor will display the switching log as shown below.
AON Timer
AON GPIO Pin
RTC Timer
Code Reference
Please refer to the API Documents PowerSave section for detail description of all API.
