I2C - Send Data to Arduino UNO
Introduction of I2C
There are two roles in the operation of I2C, one is “master”, the
other is “slave”. Only one master is allowed and can be connected
to many slaves. Each slave has its unique address, which is used
in the communication between master and the slave. I2C uses two
pins, one is for data transmission (SDA), the other is for the
clock (SCL). Master uses the SCL to inform slave of the upcoming
data transmission, and the data is transmitted through SDA. The
I2C example was named “Wire” in the Arduino example.
Materials
Example
In this example, we use Ameba as the I2C master writer, and use
Arduino as the I2C slave receiver.
When the I2C slave receives string sent from I2C master, it prints the
received string.
First, select Arduino in the Arduino IDE in “Tools” -> “Board” -> “Arduino Uno”
Open the “Slave Receiver” example in “Examples” -> “Wire” -> “slave_receiver”
:
Then click “Sketch” -> “Upload”
to compile and upload the example to Arduino Uno.
Next, open another window of Arduino IDE, make sure to choose your
Ameba development board in the IDE: “Tools” -> “Board”

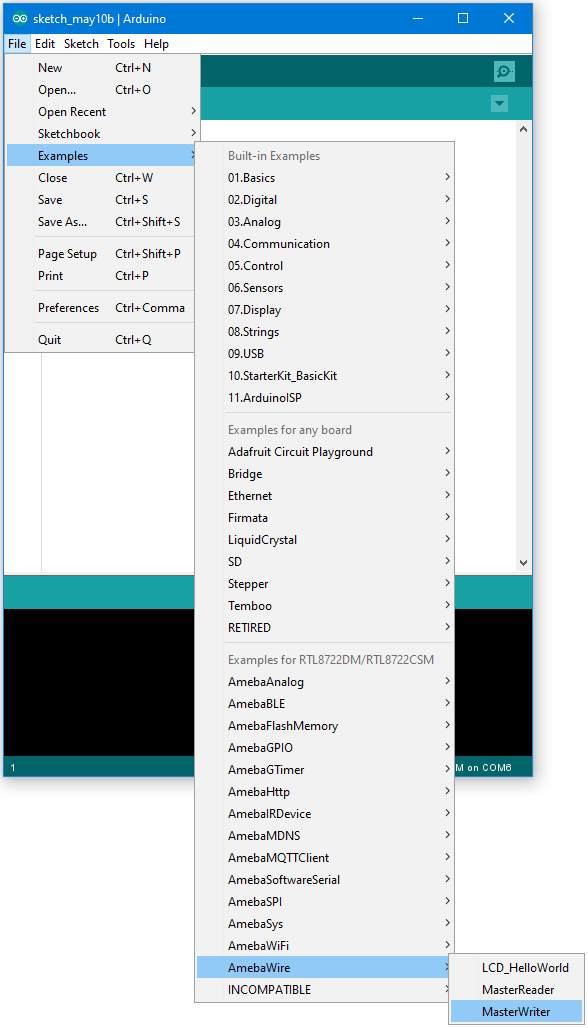

Then open the “Master Writer” example in “File” -> “Examples” ->
“AmebaWire” -> “MasterWriter”
The Arduino example uses A4 as the I2C SDA and A5 as the I2C SCL.
Another important thing is that the GND pins of Arduino and Ameba
should be connected to each other.
AMB21/ AMB22 Wiring Diagram:

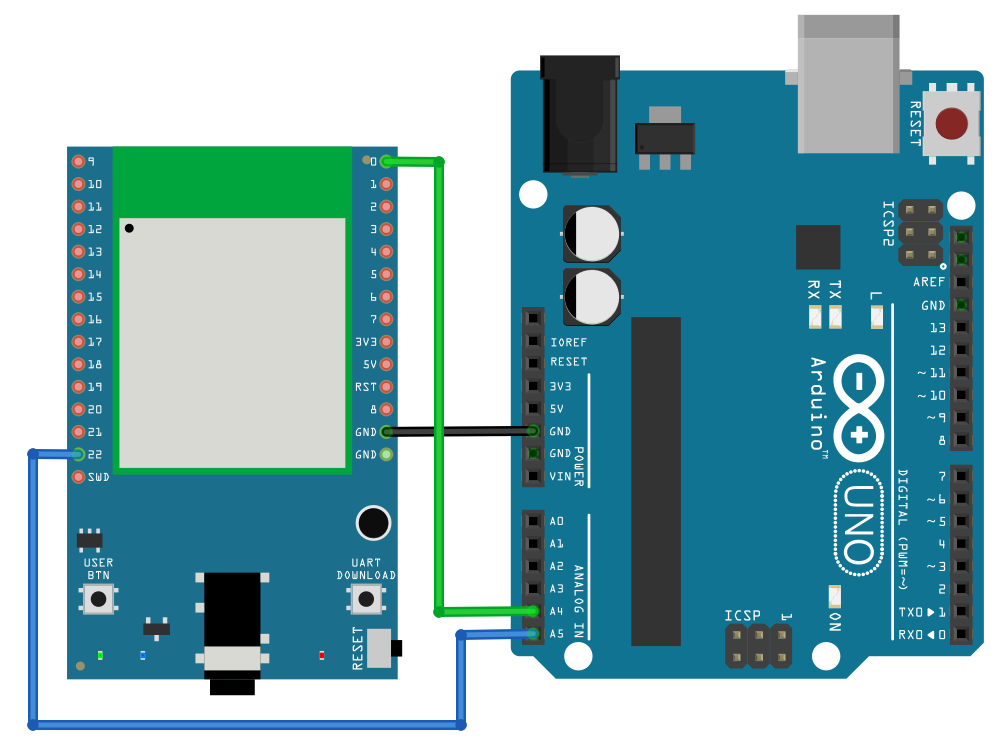

AMB23 Wiring Diagram:

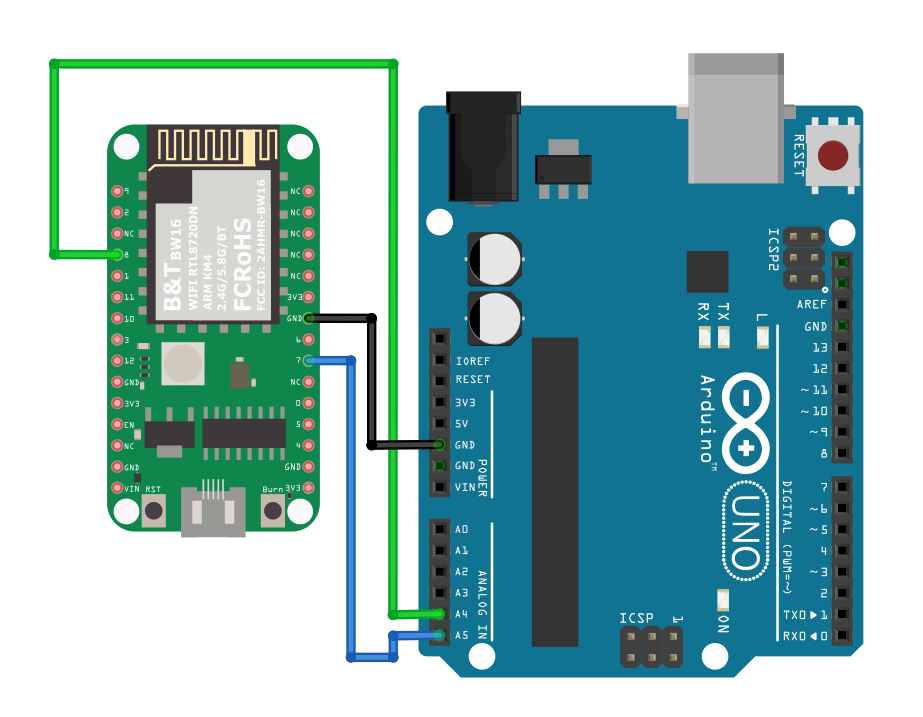

BW16 Wiring Diagram:
Open the Arduino IDE of the Arduino Uno and open the serial monitor
(“Tools” -> “Serial Monitor”).

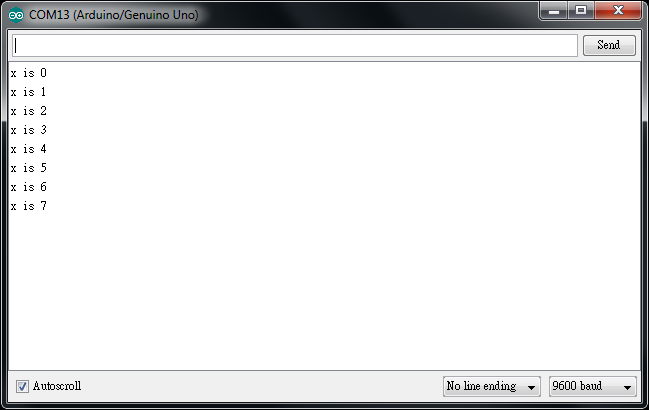

In the Serial Monitor, you can see the messages printed from Arduino
Uno.
Next, press the reset button on Arduino Uno. Now the Arduino Uno is
waiting for the connection from I2C Master.
We press the reset button on Ameba to start to send messages. Then
observe the serial monitor, you can see the messages show up every
half second.
Code Reference
You can find detailed information of this example in the documentation
of Arduino:
First use Wire.begin()/Wire.begin(address) to join the I2C bus as a
master or slave, in the Master case the address is not required.
Next, the Master uses Wire.beginTransmission(address) to begin a
transmission to the I2C slave with the given address:
Uses Wire.write() to send data, and finally use Wire.endTransmission()
to end a transmission to a Slave and transmits the bytes that were
queued:
