WiFi - Set up Client to Retrieve Google Search Informations
Materials
AmebaD [AMB21 / AMB22 / AMB23 / BW16] x 1
Example
In this example, we use Ameba to be a web client to retrieve
Informations from the Internet.
First, make sure the correct Ameba development board is selected in
“Tools” -> “Board”
Then open

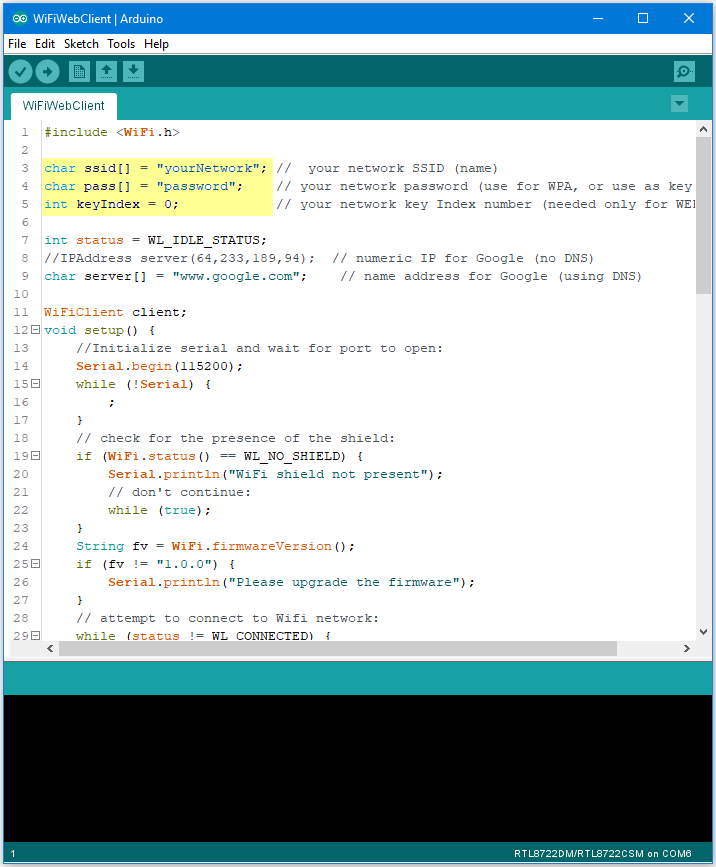

“File” -> “Examples” -> “AmebaWiFi” -> “WiFiWebClient”
In the sample code, modify the highlighted snippet and enter the required Informations (ssid, password, key index) required to connect to your WiFi network.

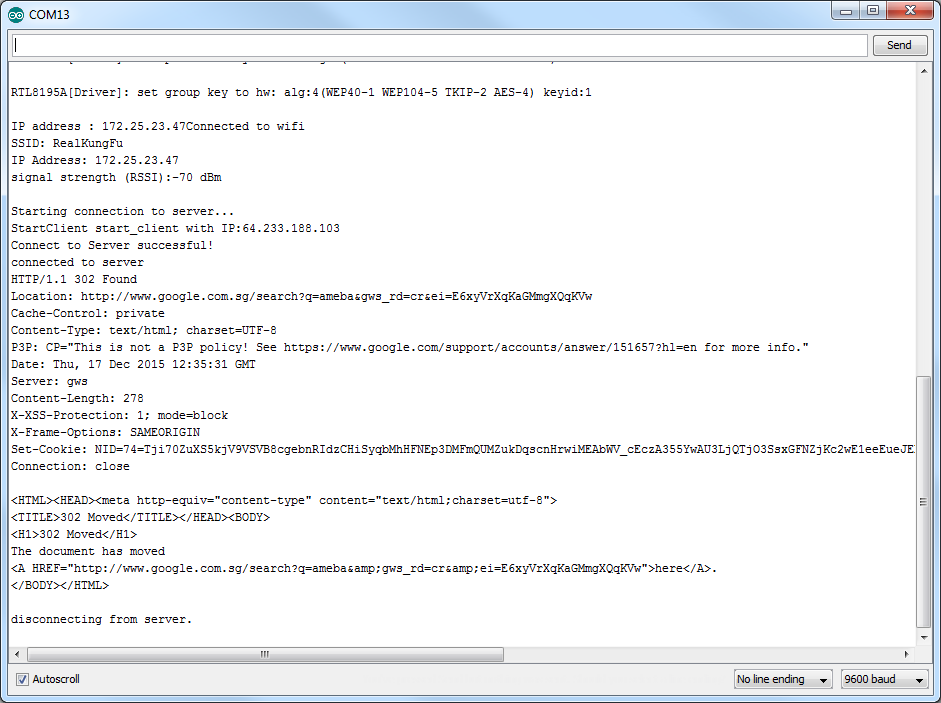

Upload the code and press the reset button on Ameba. Then you can see the Informations retrieved from Google is shown in the Arduino serial monitor.
Code Reference
To get the Informations of a WiFi connection: Use
WiFi.SSID()
to get
SSID of the current connected network.Use
WiFi.RSSI()
to get the signal strength of the connection.Use
WiFi.localIP()
to get the IP address of Ameba.Use
WiFiClient()
to create a client.Use
client.connect()
to connect to the IP address and port specified.Use
client.println()
to print data followed by a carriage return and
newline.Use
client.available()
to return the number of bytes available for
reading.Use
client.read()
to read the next byte received from the server the
client is connected to.Use
client.stop()
to disconnect from the server the client is
connected to.
