MQTT - Use Google Cloud IoT
Preparation
AmebaD [AMB21 / AMB22 / AMB23 / BW16] x 1
Google Cloud IoT Configuration

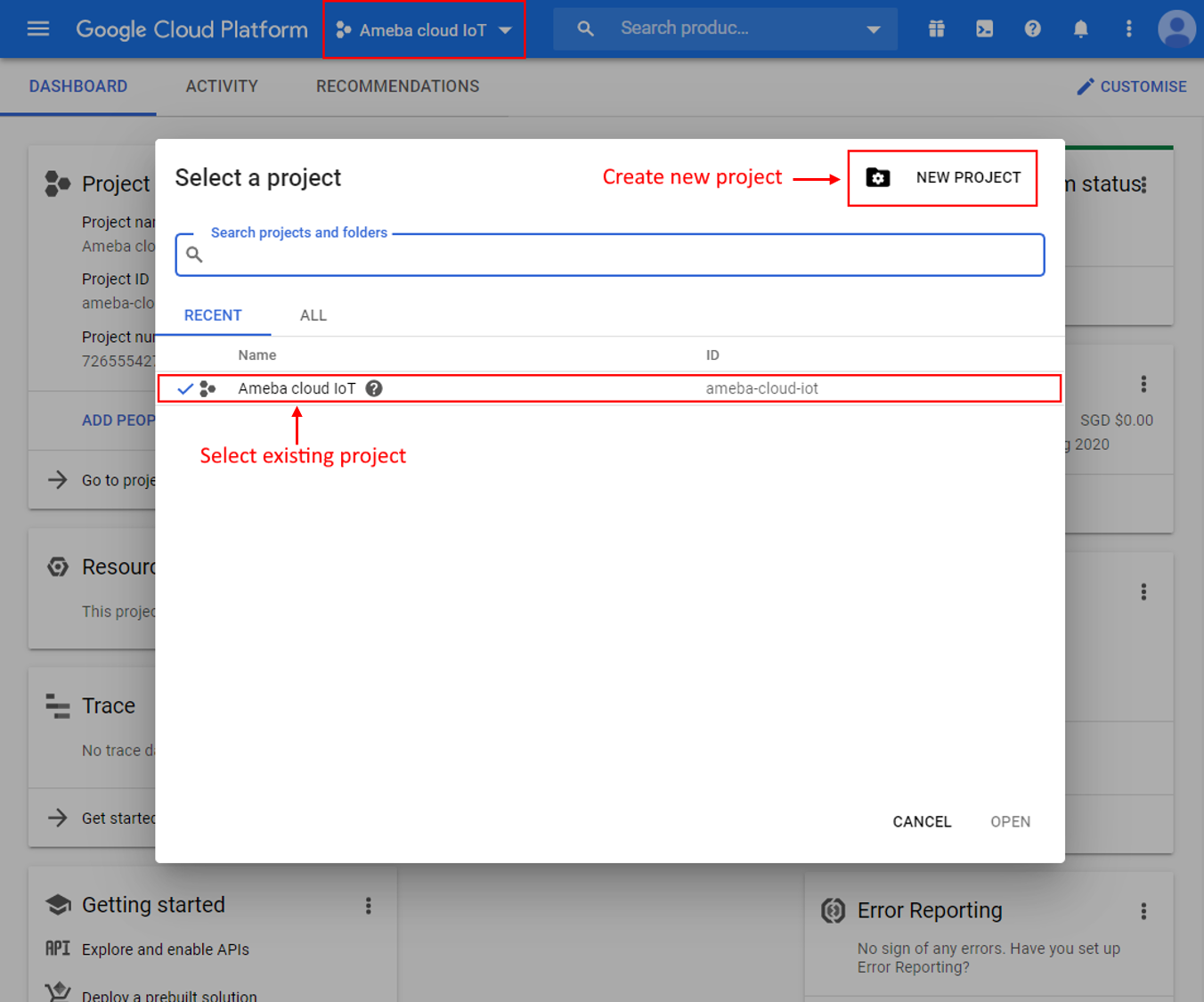

1. Select or create a Cloud Platform project In the Google Cloud Console, select an existing project or create a new project. You will need a Project ID to use with Ameba.

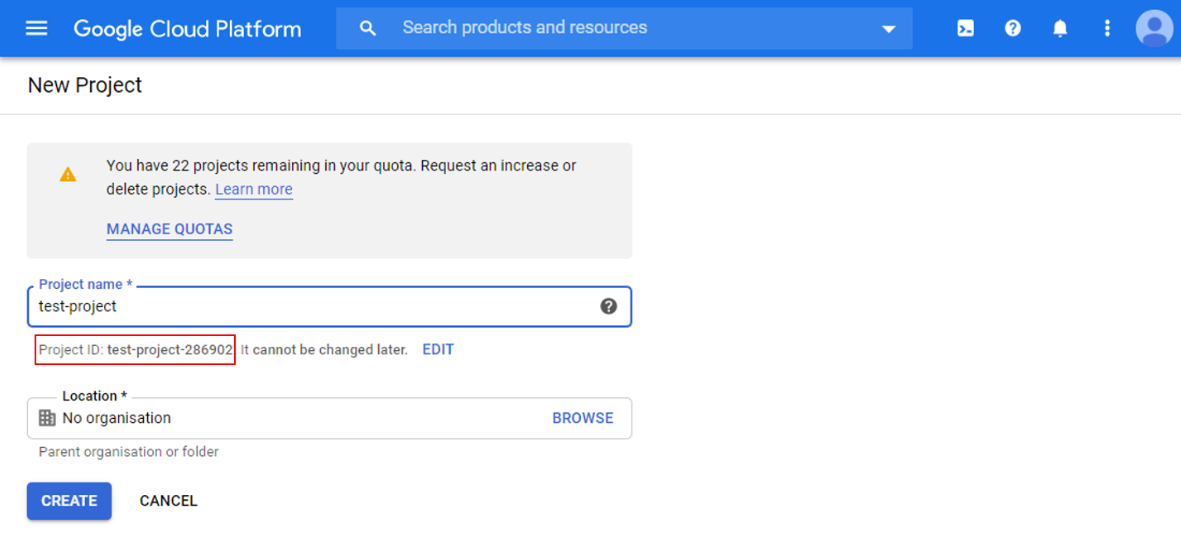

If creating a new project, enter a project name, and take note of the Project ID generated.
2. Enable billing for your project Billing needs to be enabled for your project to use Google Cloud Platform features. Follow the guide in Google cloud documentation to enable billing. https://cloud.google.com/billing/docs/how-to/modify-project 3. Enable the Cloud IoT Core API In Google Cloud console, click on the top left menu button and search for IoT Core.
Click enable to activate Google Cloud IoT API for your project.

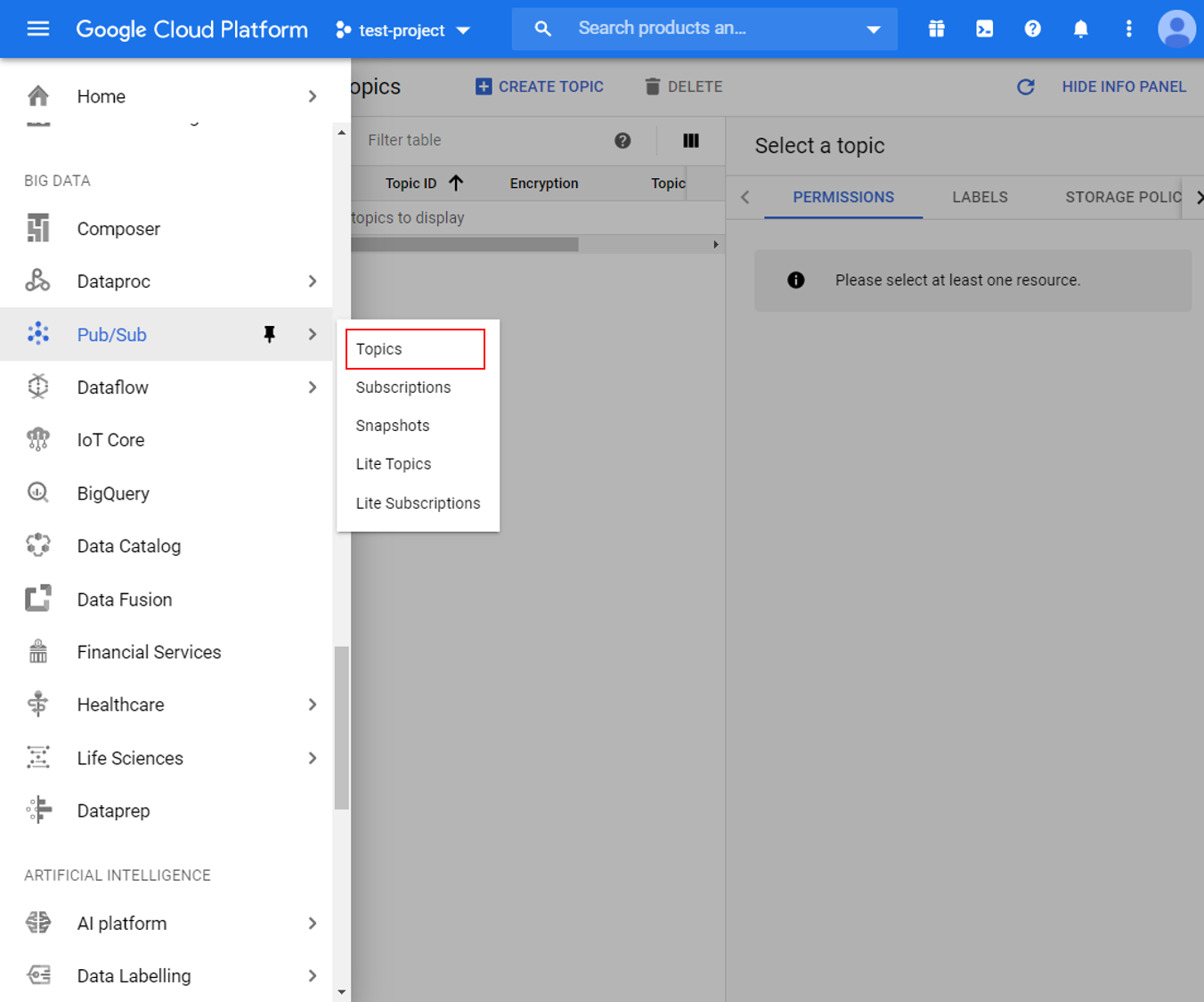

4. Create a Cloud Pub/Sub topic In Google Cloud console, click on the top left menu button and search for Pub/Sub.

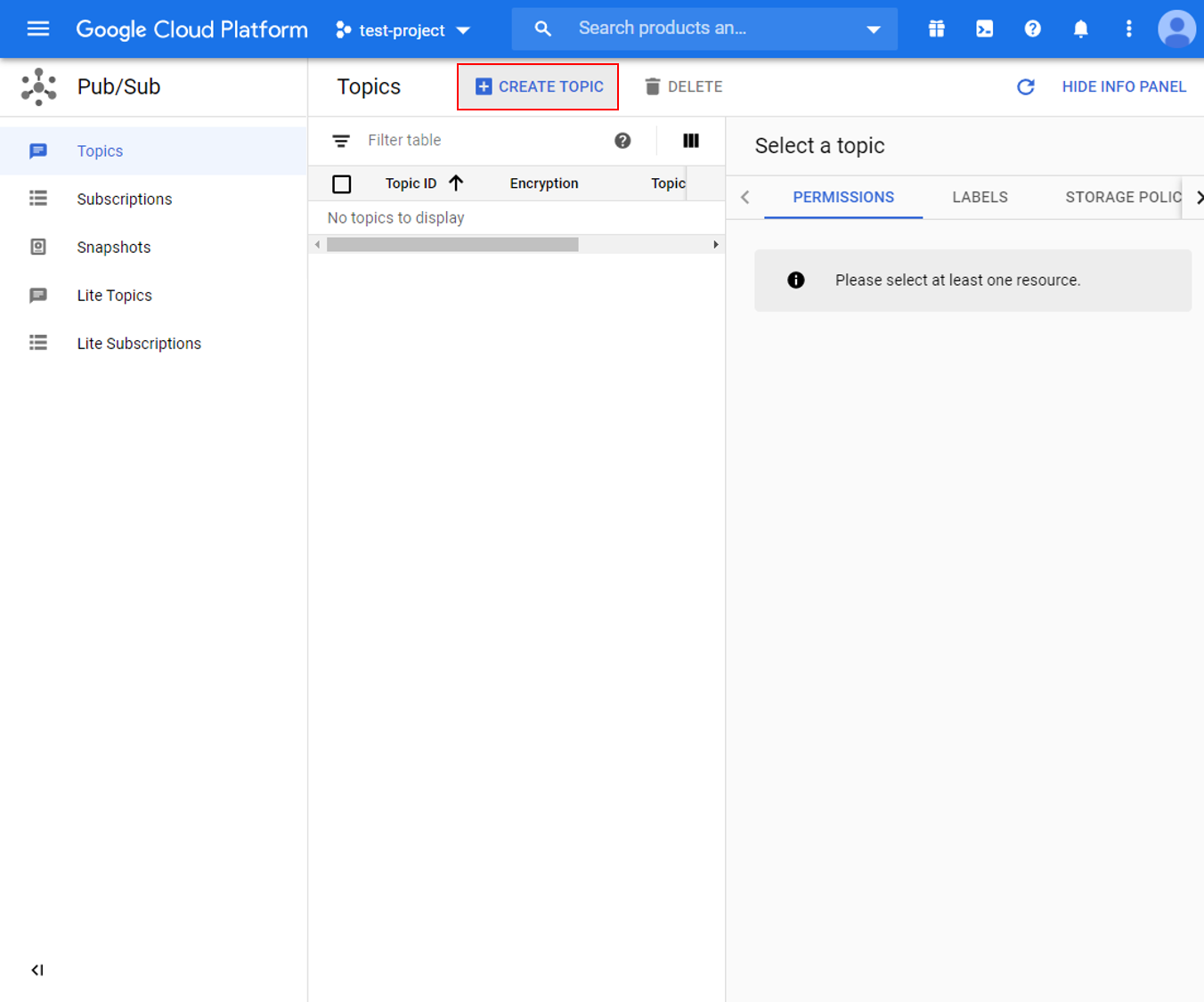

Create a new topic for your project and give it a suitable topic ID.

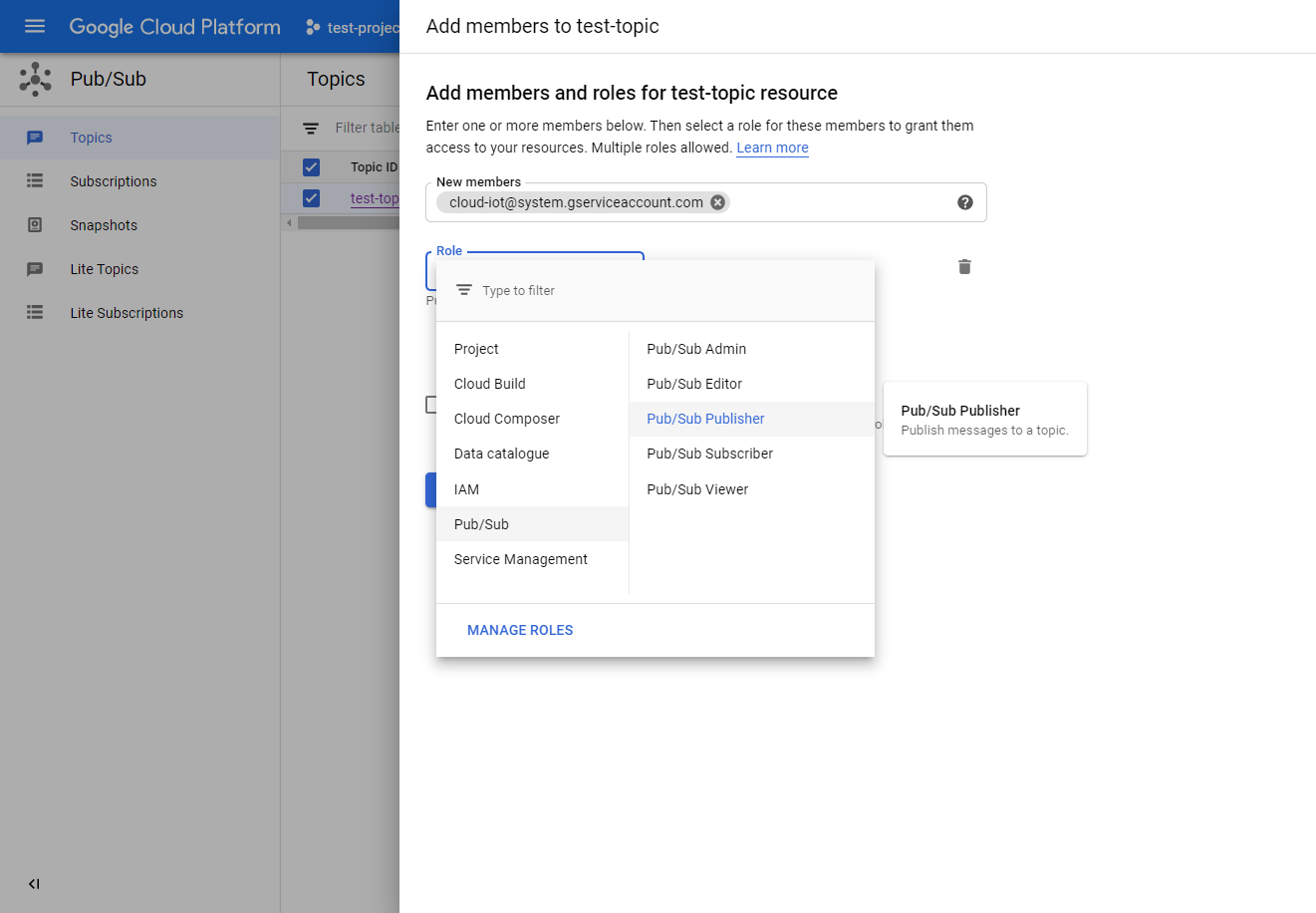

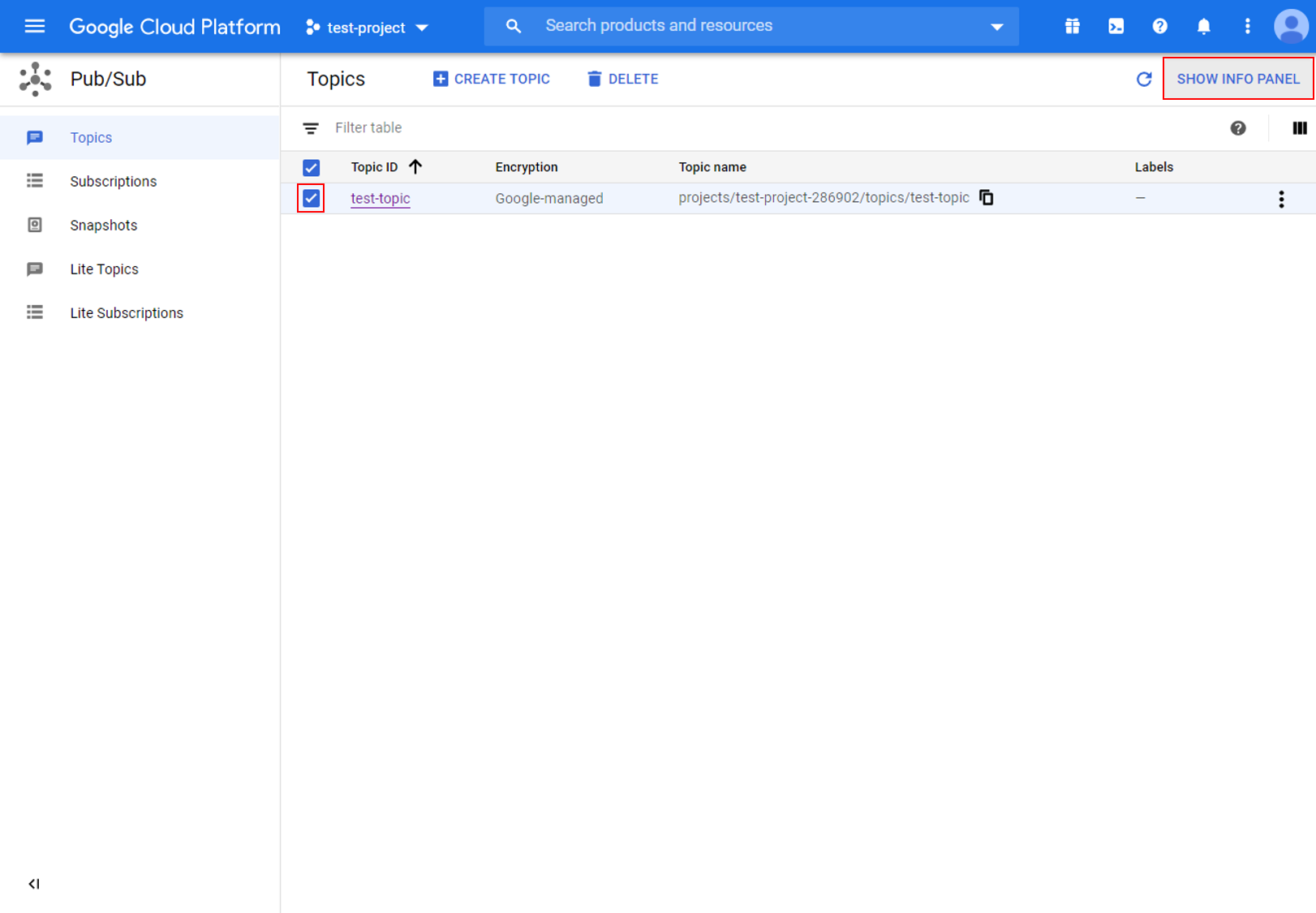

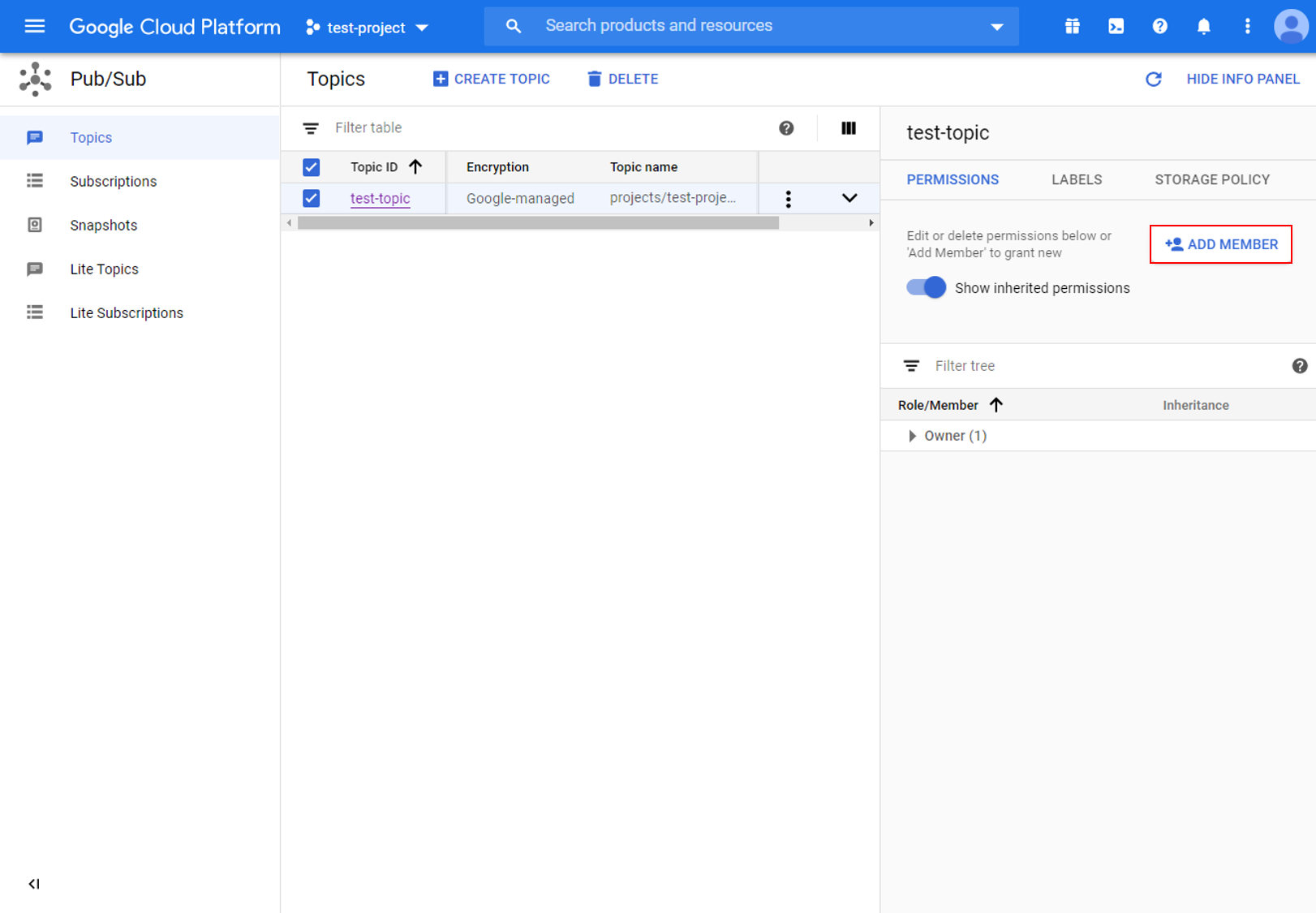

After the topic is created, go to the permissions tab of the info panel, and add “cloud-iot@system.gserviceaccount.com” with the role of “Pub/Sub Publisher”.
5.Create a device registry Go back to the IoT Core settings page and create a new registry.
Choose a suitable Registry ID and in which to store data. Remember the **Registry ID and Regionfor use with Ameba later. For the Pub/Sub topic, select the topic created in the previous step.

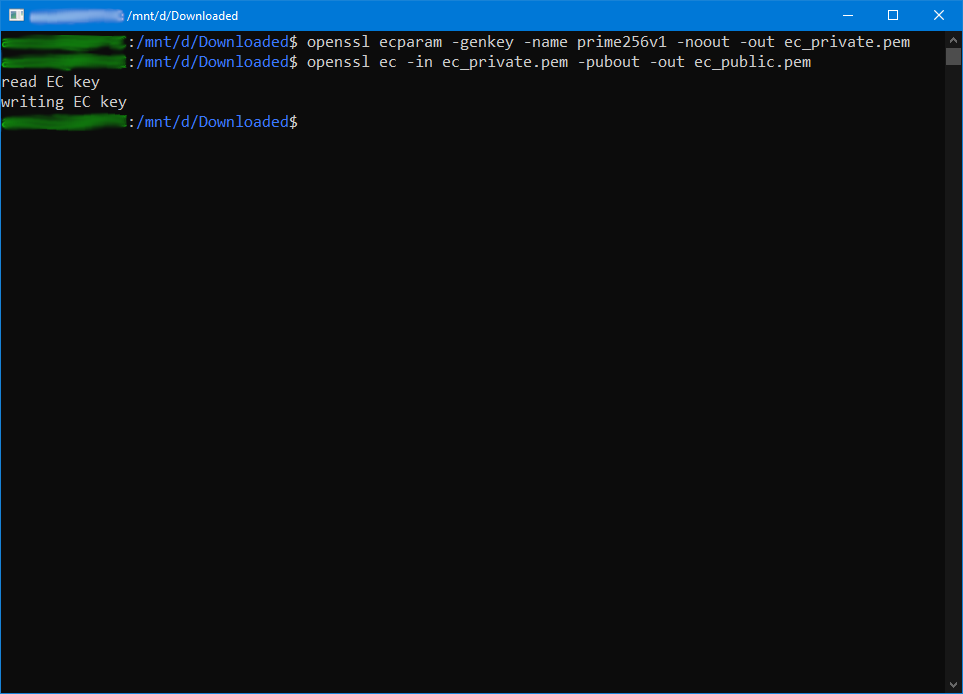

6. Create a public/private key pair Using Openssl in a terminal in Windows/Linux/MacOs, run the following commands to generate a private and public key pair. Two files will be created by these commands, “ec_private.pem” containing the private key, and “ec_public.pem” containing the public key.
$ openssl ecparam -genkey -name prime256v1 -noout -out ec_private.pem
$ openssl ec -in ec_private.pem -pubout -out ec_public.pem

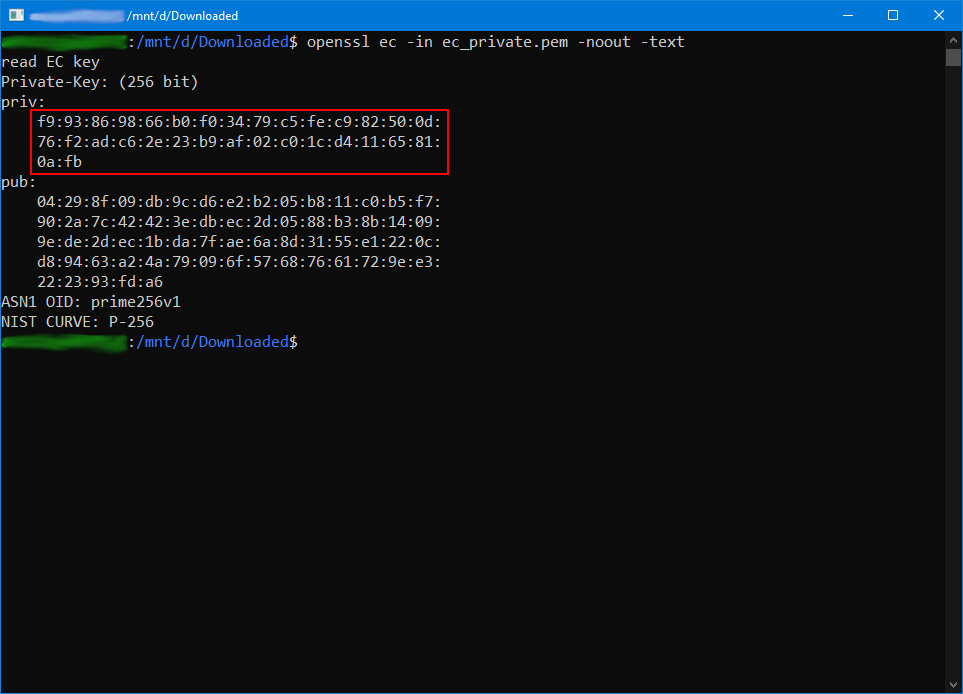

Run the next command to extract out the private key, and remember the highlighted string of hexadecimal numbers for use with Ameba later.
$ openssl ec -in ec_private.pem -noout -text

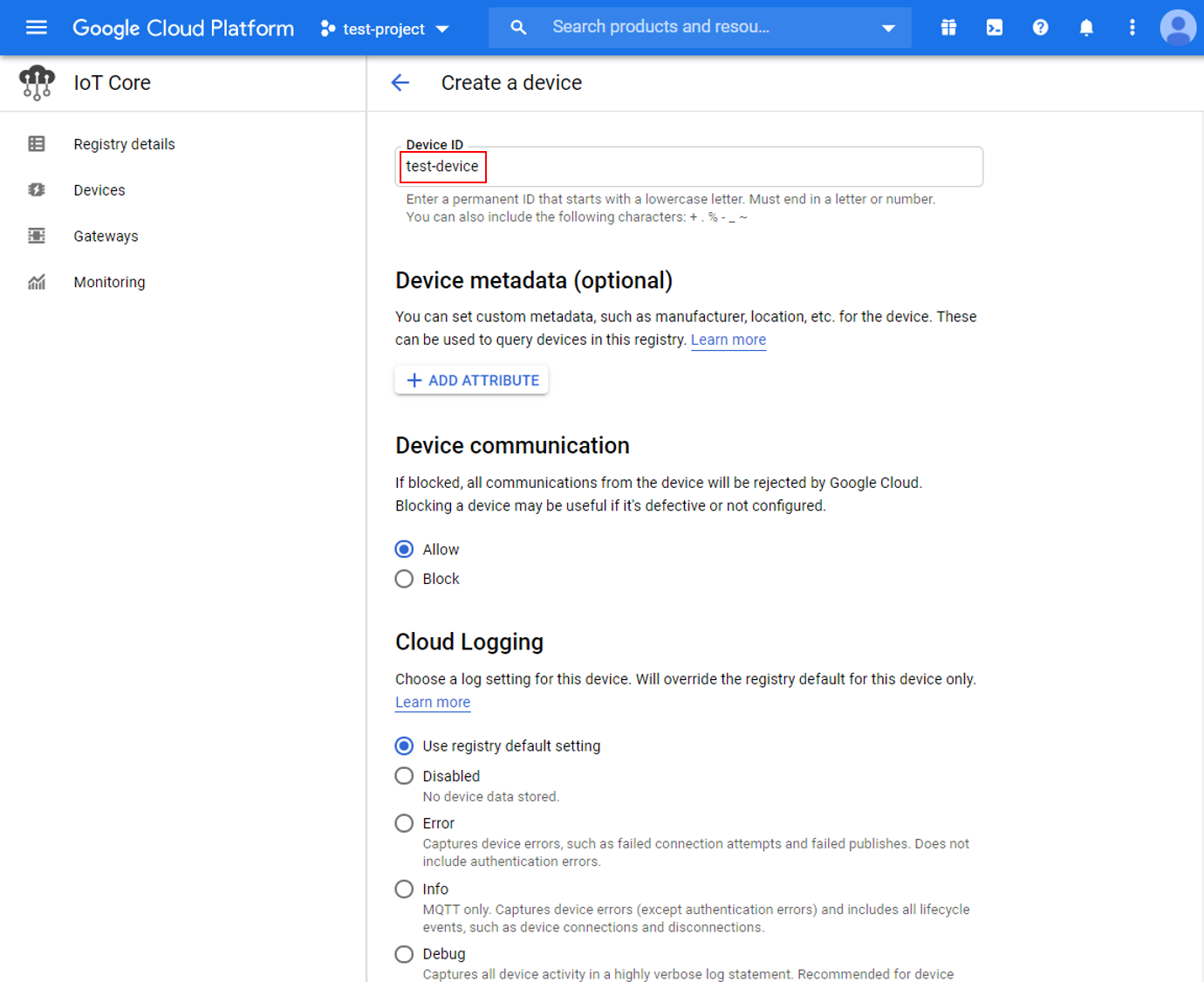

7. Create a device Go back to the IoT Core settings page and create a new device.
Give the device a suitable Device ID and remember it for use with Ameba later.

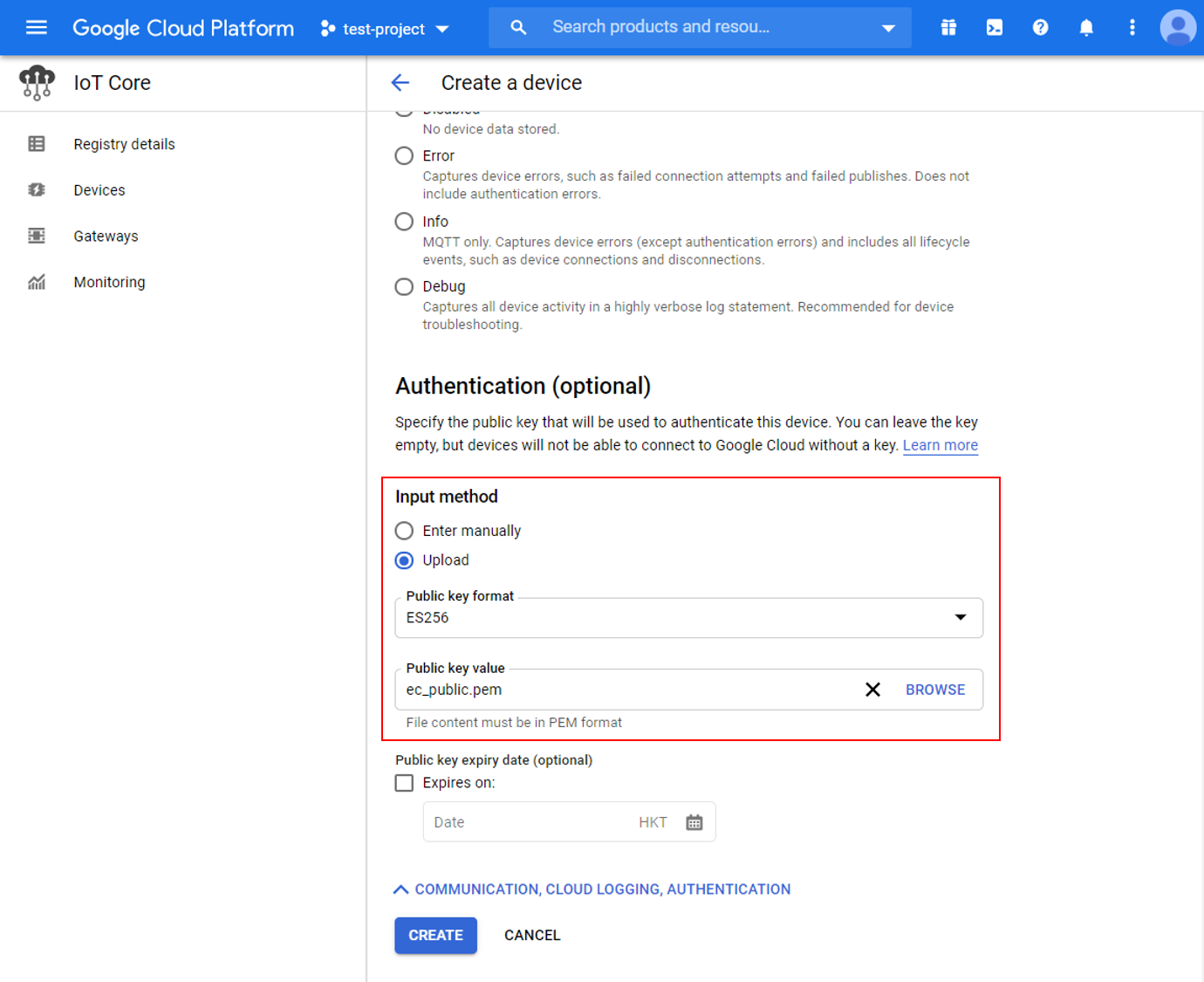

In the authentication section of the additional options, upload the previously generated “ec_public.pem” public key.

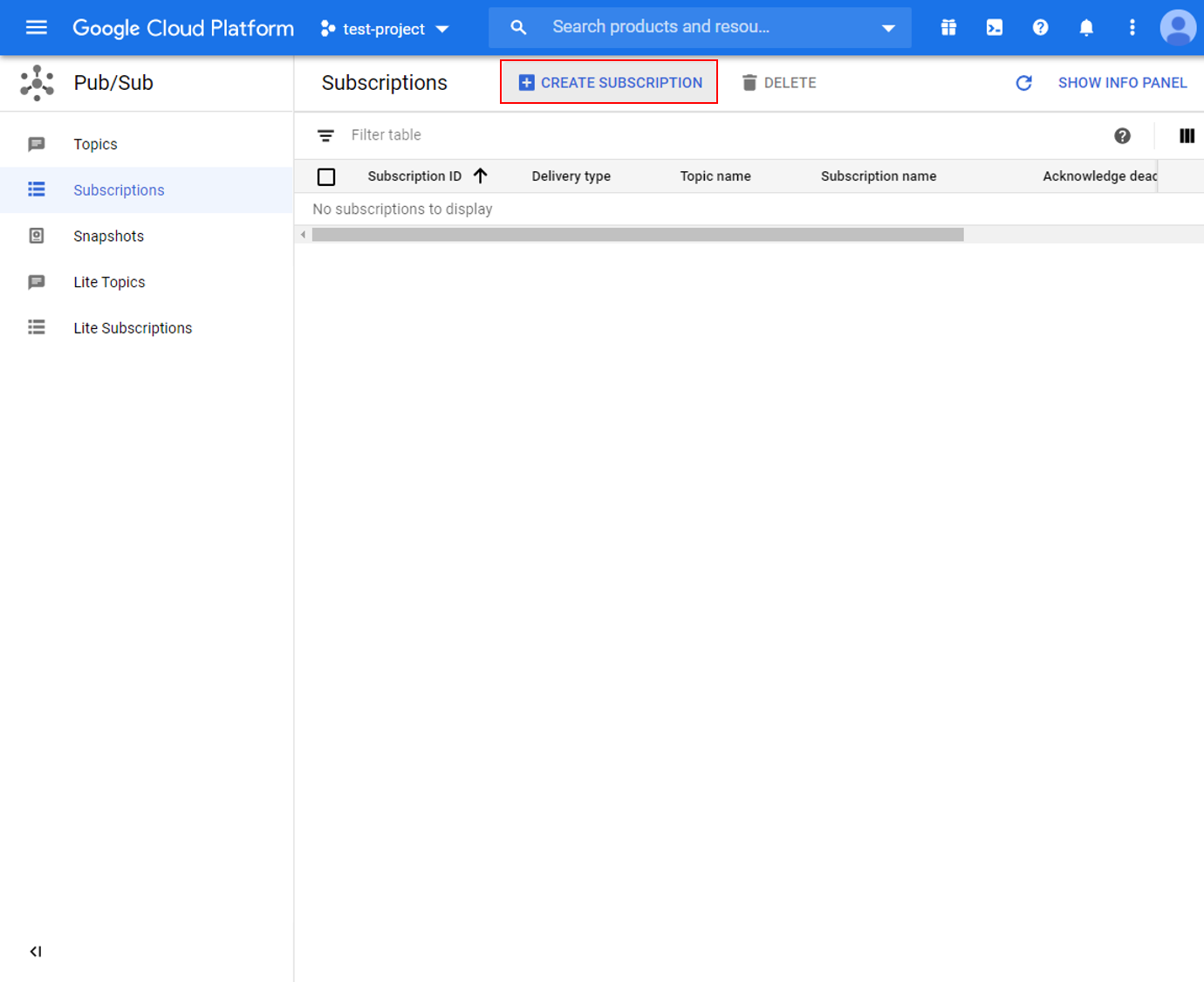

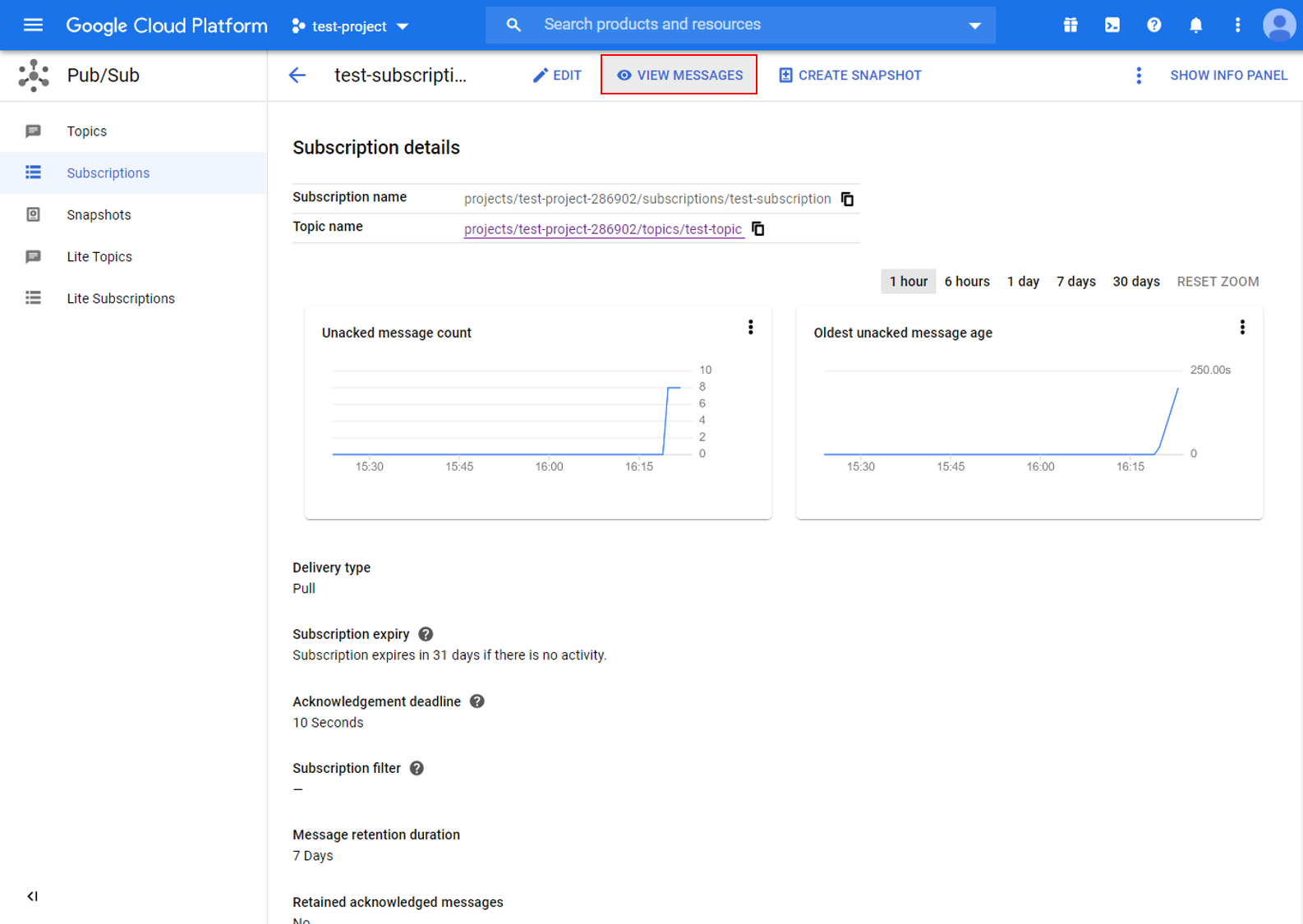

8. Create a Cloud Pub/Sub subscription To observe messages sent by Ameba, create a subscription in Pub/Sub.
Choose a suitable subscription ID and select the previously created topic.

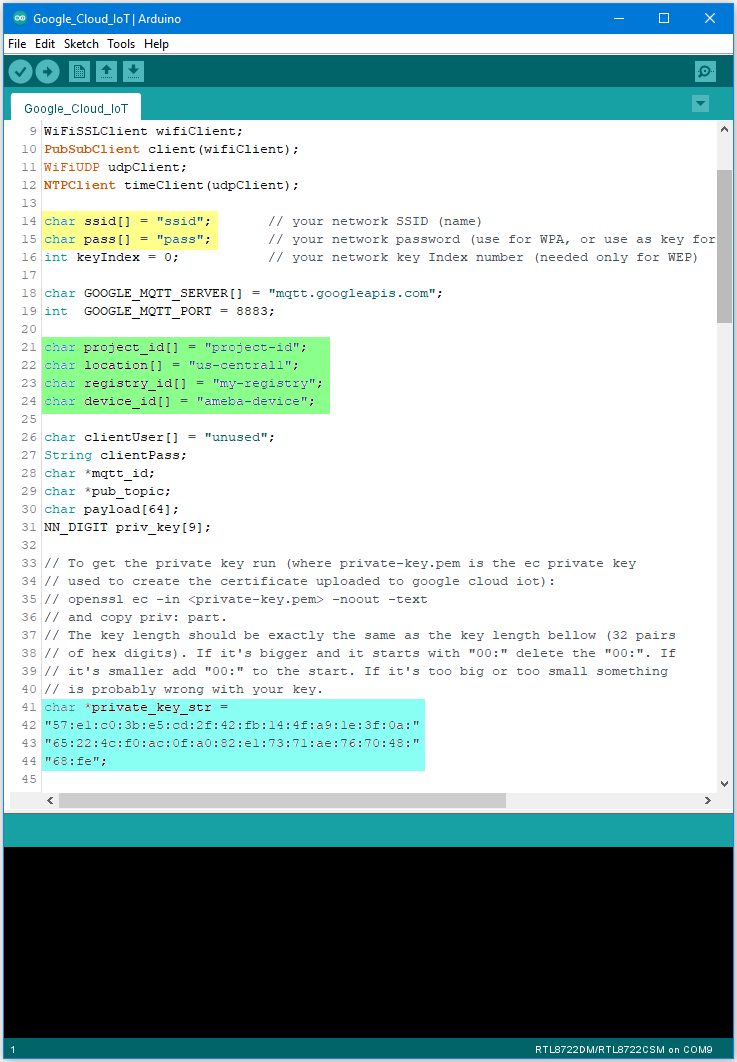

Example

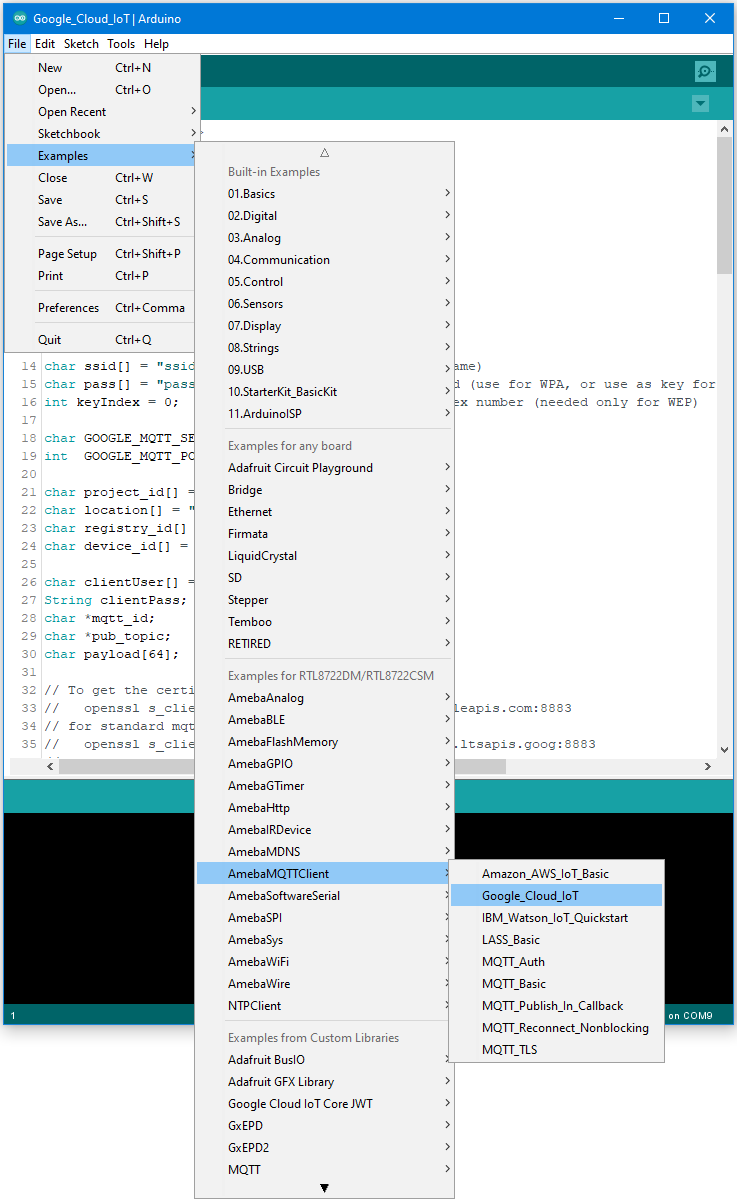

“File” -> “Examples” -> “AmebaMQTTClient” ->
“Google_Cloud_IoT”
.Code Reference
In setup()
, we set up RootCA which is required to form a TLS connection
with Google’s servers.
wifiClient.setRootCA((unsigned char*)rootCABuff);
In loop()
, each loop checks the Internet status and re-connect to it
when the environment has a problem.
if (WiFi.status() != WL_CONNECTED) {
while (WiFi.begin(ssid, pass) != WL_CONNECTED)
{
delay(1000);
}
Serial.println("Connected to wifi");
}
To publish messages, mqtt_id , clientPass and pub_topic are required. mqtt_id is generated by printing the project ID, server location, registry ID and device ID in the required format:
mqtt_id = (char *)malloc(strlen("projects/") + strlen(project_id) + strlen("/locations/us-central1/registries/") + strlen(registry_id) + strlen("/devices/") + strlen(device_id) + 1);
sprintf(mqtt_id, "projects/%s/locations/us-central1/registries/%s/devices/%s", project_id, registry_id, device_id);
clientPass
is generated using a JSON web token (JWT) generator function,
which requires the project ID and current time, and signs it with the
private key:
clientPass = CreateJwt(project_id, timeClient.getEpochTime(), priv_key);
pub_topic
is generated by printing the project ID and topic in the
required format:
pub_topic = (char *)malloc(strlen("/devices/") + strlen(device_id) + strlen("/events") + 1);
sprintf(pub_topic, "/devices/%s/events", device_id);
MQTT Server setting:
client.setServer(GOOGLE_MQTT_SERVER, GOOGLE_MQTT_PORT);
client.setPublishQos(MQTTQOS1);
client.waitForAck(true);

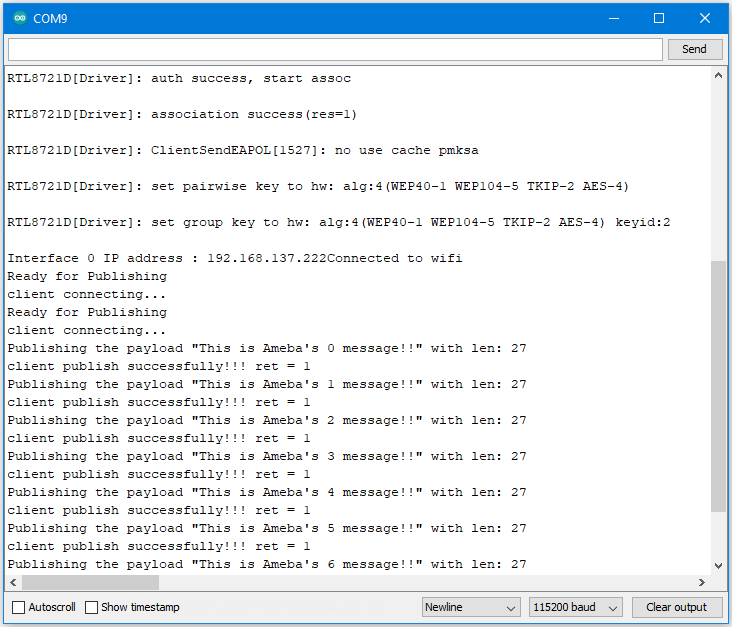

Connect to google cloud and publish messages:
if (client.connect(mqtt_id, clientUser, clientPass.c_str())){
// ...
for(int i = 0; i < count; i++){
// ...
sprintf(payload, "This is Ameba's %d message!!", i);
ret = client.publish(pub_topic, payload);
// ...
}
// ...
client.disconnect();
}
free(mqtt_id);
free(pub_topic);
