HTTP - Set up Server to Get the Ameba Status
Materials
AmebaD [AMB21 / AMB22 / AMB23 / BW16] x 1
Example
In this example, we connect Ameba to WiFi and use Ameba as server to
send message to connected client.

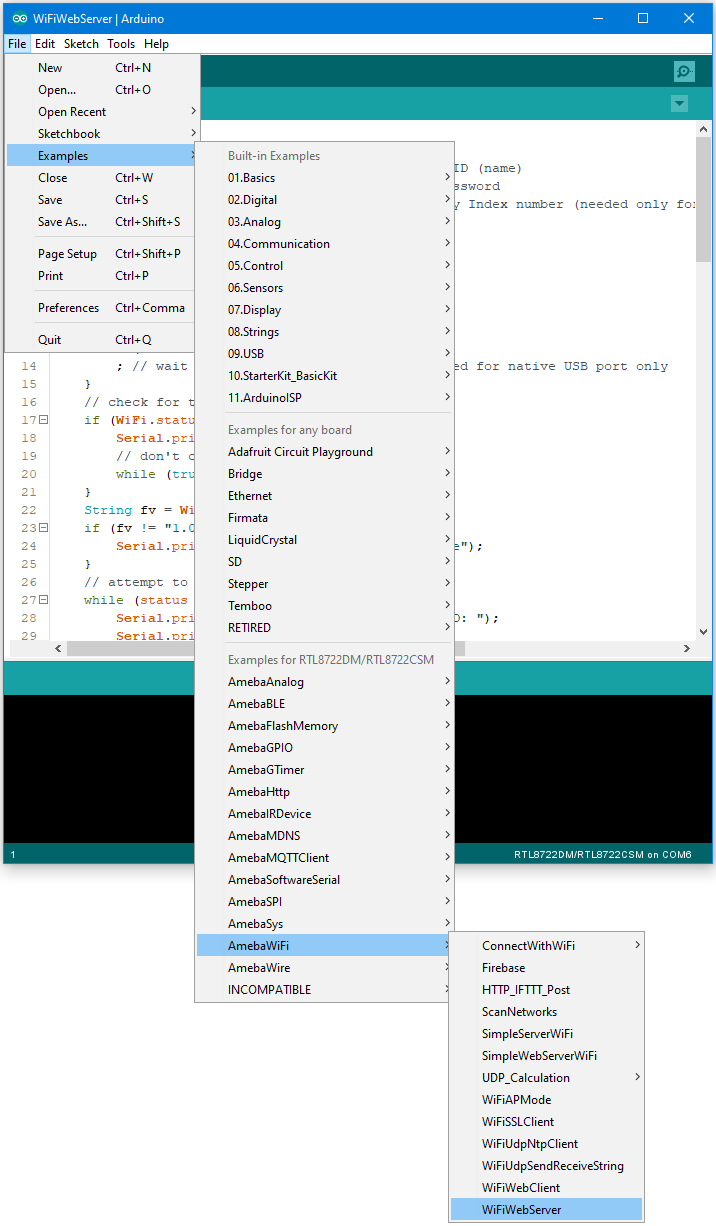

First, open
“File” -> “Examples” -> “AmebaWiFi” -> “WiFiWebServer”

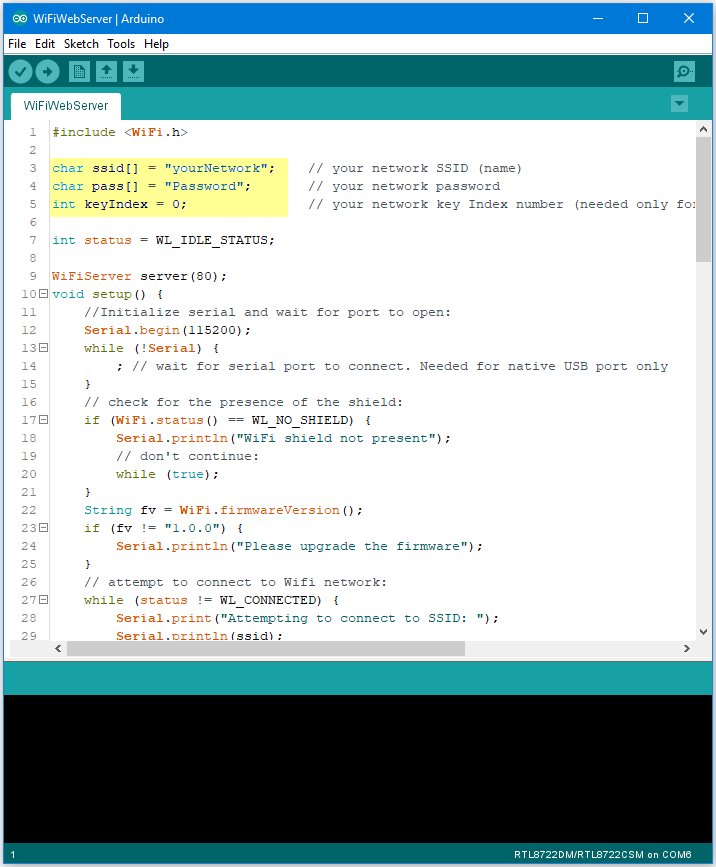

In the sample code, modify the highlighted snippet and enter the
required information (ssid, password, key index) required to connect to
your WiFi network.
Upload the code and press the reset button on Ameba. After connecting to

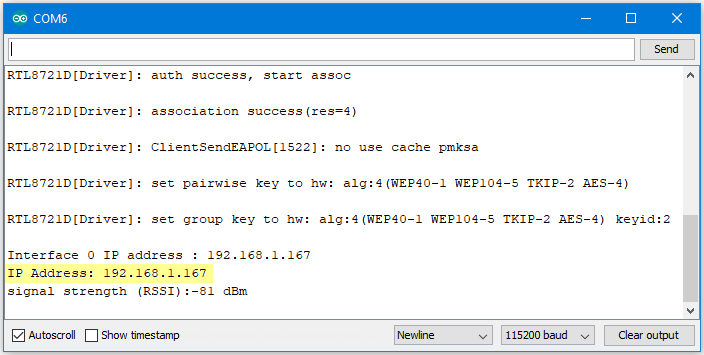

WiFi, Ameba starts to run as server. The IP of the server is shown in
the serial monitor, and port is 80.

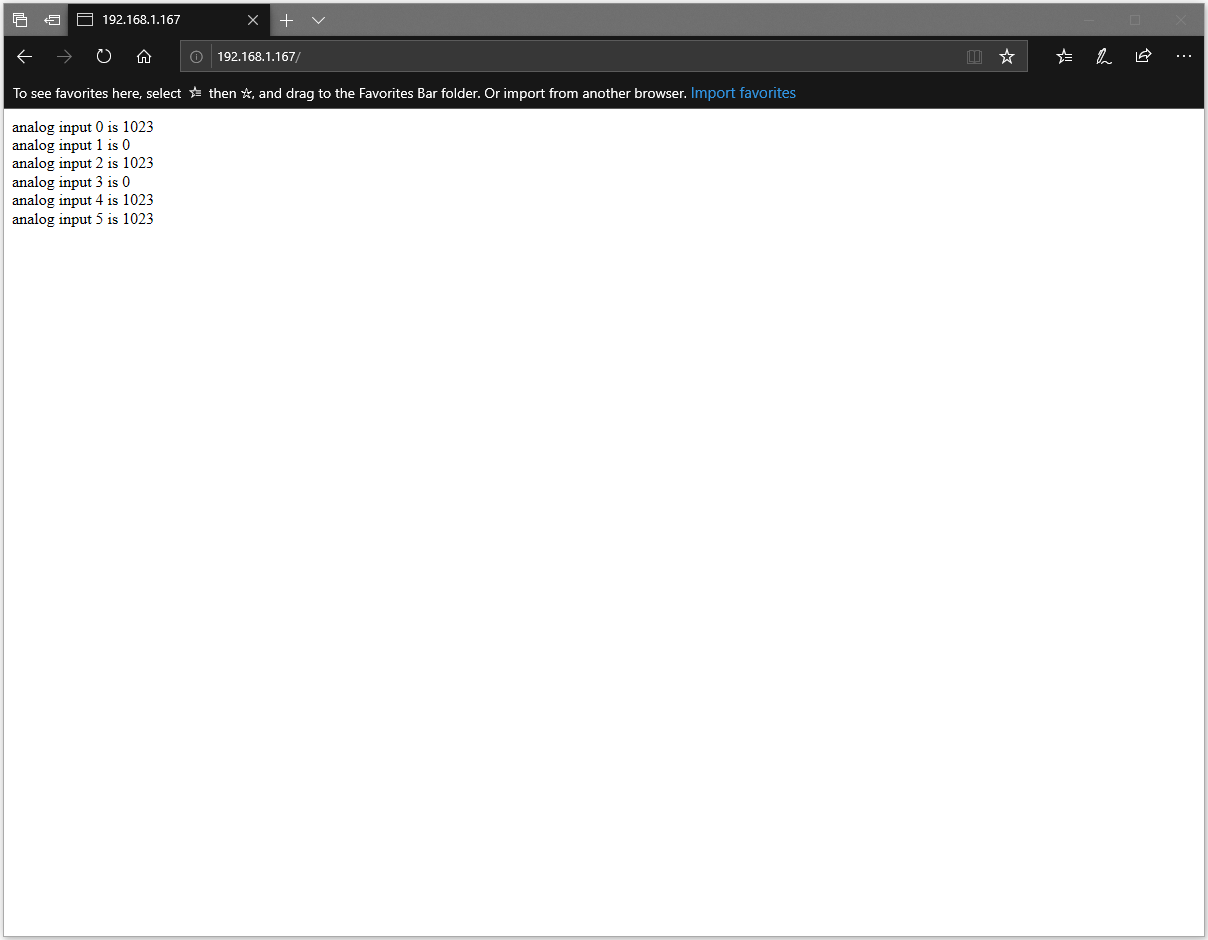

We connect to the server in a browser, and we can see the data sent
from the server.
Code Reference
Use
WiFi.begin()
to establish WiFi connection.To get the information of a WiFi connection:
Use
WiFi.SSID()
to get SSID of the current connected network.Use
WiFi.RSSI()
to get the signal strength of the connection.se
WiFi.localIP()
to get the IP address of Ameba.Use
WiFiServer server()
to create a server that listens on the
specified port.Use
server.begin()
to tell the server to begin listening for incoming
connections.Use
server.available()
to get a client that is connected to the server
and has data available for reading.Use
client.connected()
to check whether or not the client is connected.Use
client.println()
to print data followed by a carriage return and
newline.Use
client.print()
to print data to the server that a client is
connected to.Use
client.available()
to return the number of bytes available for
reading.Use
client.read()
to read the next byte received from the server the
client is connected to.Use
client.stop()
to disconnect from the server the client is
connected to.
