BLE – BLE UART Service
Materials
AmebaD [AMB21 / AMB22 / AMB23 / BW16] x 1
Android / iOS smartphone
Example
Introduction
With BLE, application data is sent and received using the GATT system.
GATT uses services, characteristics, and attributes to organise data
and control how the data can be read from and written to. The
Bluetooth SIG specification for BLE includes several predefined
services for common applications, but users are free to implement
custom services and characteristics to best fit their data structure
and application needs
In this example, the BLEService and BLECharacteristic classes are used
to implement a custom service for transmitting ASCII characters
similar to regular UART. This custom service is the Nordic UART
Service, which is supported in several smartphone apps.
Procedure
Ensure that a compatible BLE UART app is installed on your smartphone,
it is available at:
– Google Play Store:
– Apple App Store:

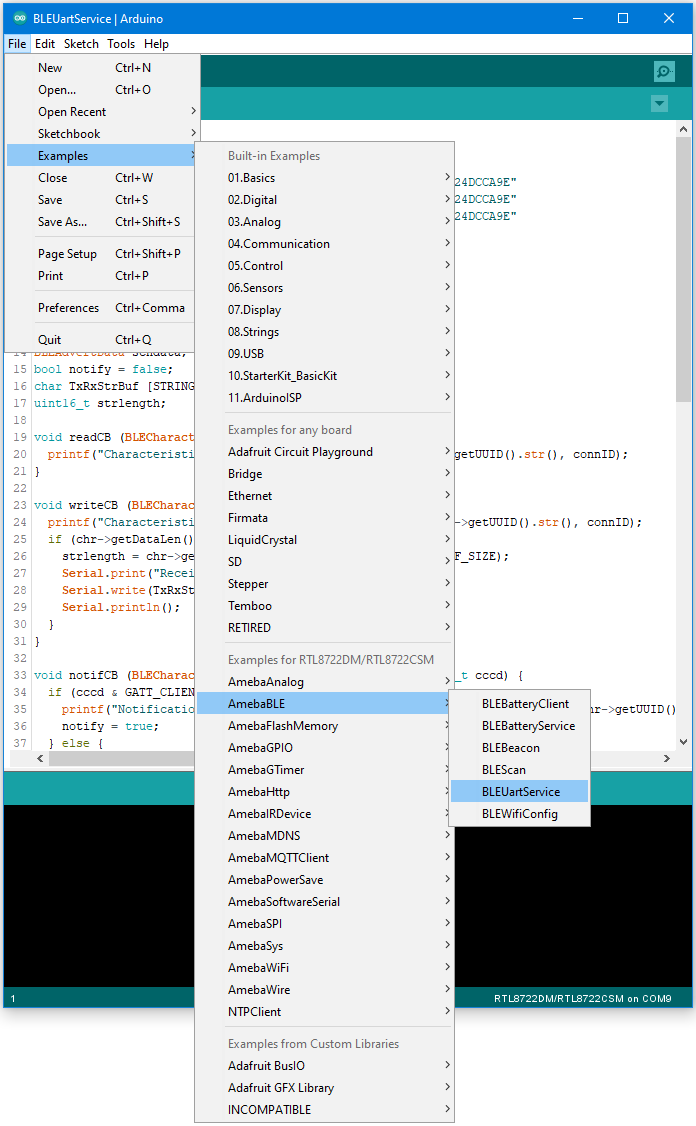

Open the example, “Files” -> “Examples” -> “AmebaBLE” ->
“BLEUartService”
.
Upload the code and press the reset button on Ameba once the upload is
finished.

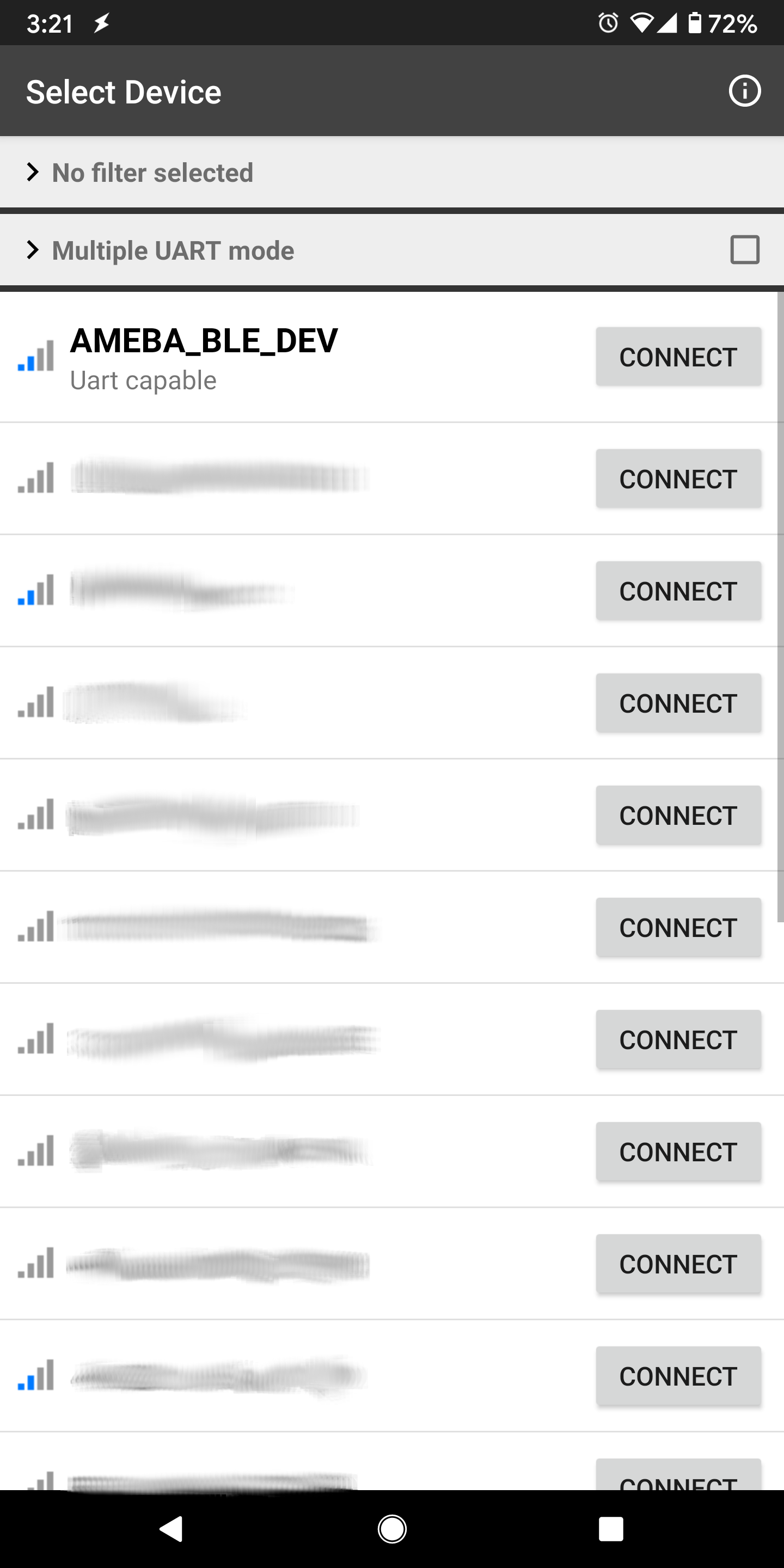

Open the app on your smartphone, scan and connect to the Ameba board
shown as “AMEBA_BLE_DEV” and choose the UART function in the app. Note
that the BLE UART service on the Ameba board will only work with the
UART and Plotter functions in the Bluefruit Connect app, other
functions (Pin I/O, Image Transfer) require other BLE services that
are not included in this example.

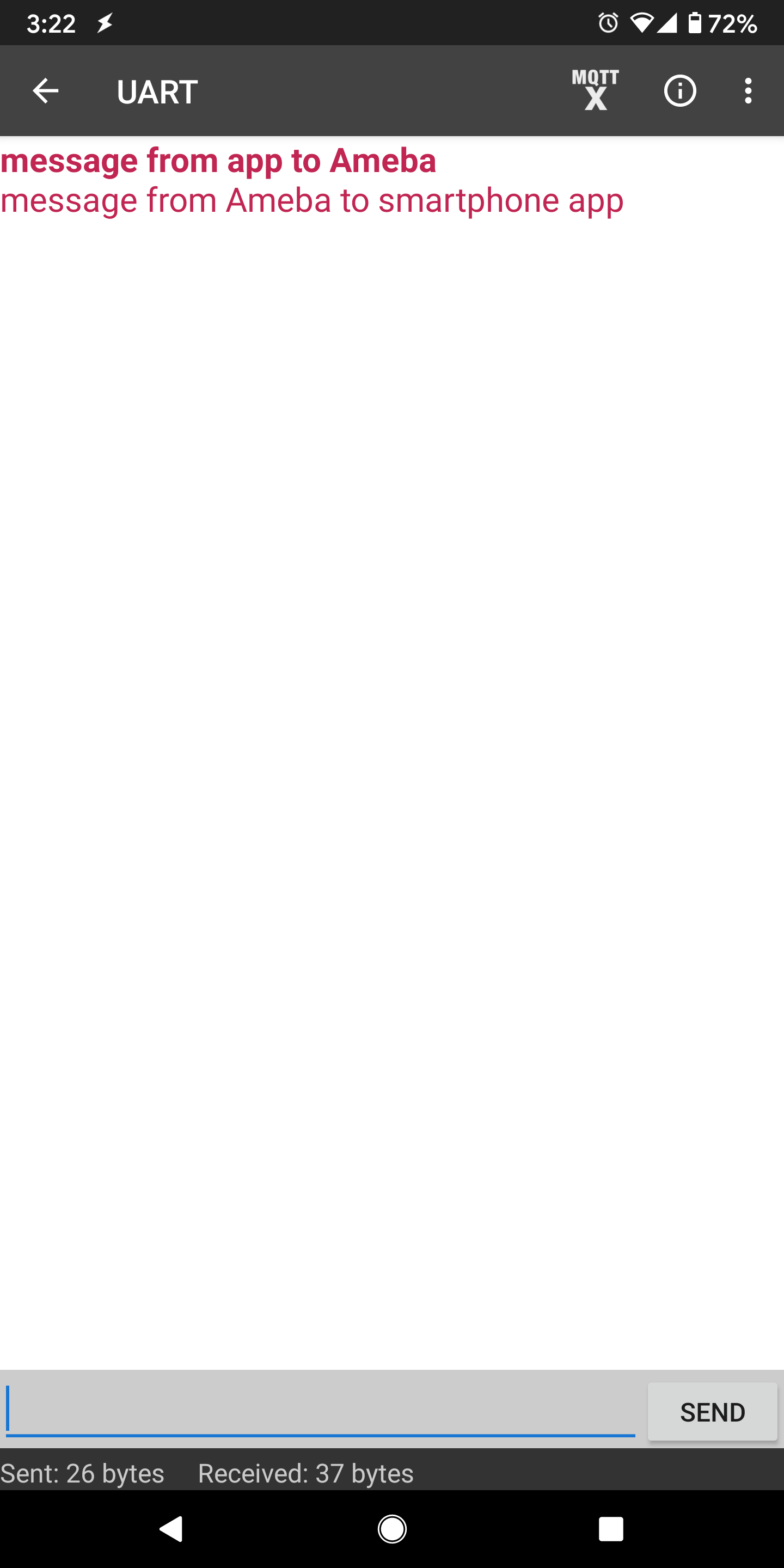

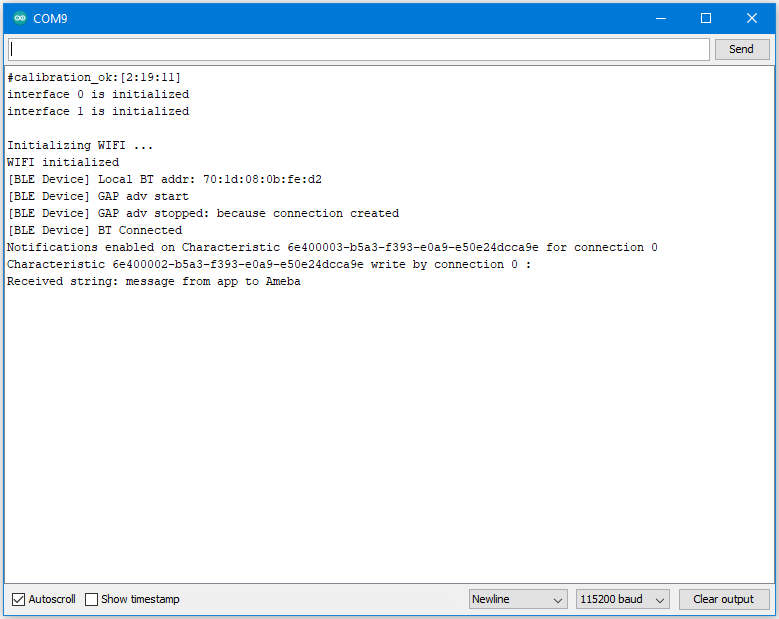

In the UART terminal section of the app, enter a message and click
send. You should see the message appear in the Arduino serial monitor.
In the Arduino serial monitor, enter a message and click send. The
message will appear in the smartphone app.
Code Reference
The BLECharacteristic class is used to create two characteristics, one
for receive (Rx) and one for transmit (Tx), and added to a service
created with the BLEService class.
The required read/write/notify properties are set for each
characteristic using the
set__Property()
methods, and callback
functions are registered using the set__Callback()
methods. The
required buffer size is also set for each characteristic so that it
has enough memory to store a complete string.When data is written to the receive characteristic, the registered
callback function is called, which prints out the received data as a
string to the serial monitor.
When data is received on the serial port, it is copied into the
transmit characteristic buffer, and the
notify()
method is used to
inform the connected device of the new data.
